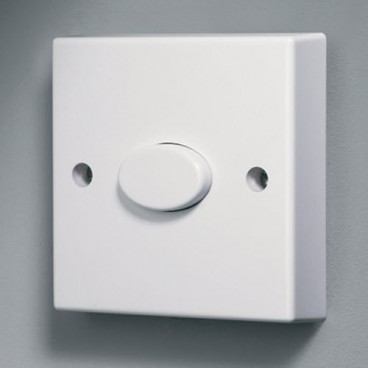

The CP Electronics Ellipse Time Lag Switch represents a fast and easy method of reducing energy consumption for lighting in the home or in the workplace. Find out more by scrolling down.

4 items in stock

CP Ellipse

£ 14.25

Add to cart

30 other products in the same category:

Customers who bought this product also bought:

More info

The unit does not need a neutral connection and can easily be used to replace existing light switches, which means the CP Electronics Ellipse Time Lag Switch is an excellent, simple and economic choice all round. Ease of installation means savings in more ways than one.

The duration of the CP Electronics Ellipse Time Lag Switch time delay can be chosen via the thumbwheel which is situated on the back of the unit. Neon illumination makes the CP Electronics Ellipse Time Lag Switch easy to find in the dark.

Various Applications

The CP Electronics Ellipse Time Lag Switch is a good option for both home and workplace. In the workplace it can be installed in areas of heavy traffic such as hallways and foyers. In the home, it’s a good option for entrances and exits. Lights which are usually left on, will turn off automatically and save power.

Technical Specifications

  •          Mains Voltage Switch: 220-240 Volts AC 50 Hz
  •          Time Out Period: 20 seconds to 20 minutes (approximate)
  •          Fixing Method: Surface fixing 25mm deep plastic surface mount moulded box
  •          Flush fixing 25mm steel wall box or 32mm deep cavity wall box
  •          Terminal Capacity: 1.5mm2
  •          Material: Flame retardant ABS
  •          Class 2 Electrical rated
  •          Temperature: -10degC to 35degC
  •          Conformity: EMC-89/336/EEC, LVD-73/23/EEC
  •          2 wire (no neutral)
  •          Not suitable for use with LED lamps
