Wiska SH506W Insulated Joint 1.5-6mm SWA Joint

Wiska SH506W Insulated Joint 1.5-6mm SWA Joint

Wiska SH506W Insulated Joint 1.5-6mm SWA Joint

This is the Wiska Shark gel insulated SWA watertight joint kit for 1.5mm - 6.00mm 3-5 core cable. It is IP68 rated (watertight), with no need for resin; complete sealable cable joint.

5 items in stock

Wiska SH506W

£ 19.95

Add to cart

30 other products in the same category:

More info

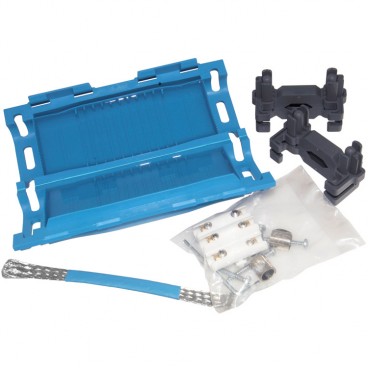

  • Comes complete with terminal block, allen key, force roll springs, cable retention clamps, and the gel insulated joint.
  • IP rating - Protection class to EN 60 529: IP68 rated
  • Flame protection: Flame-retardant acc. EN 60695-2-11
  • Temperature range: -20°C to 90°C
  • Material: the housing is of polyamide, the gel is silicone.
  • Equipment: Straight and branch joint for low voltage cable up to five cores, incl. separators and cable ties, Approval acc. EN 50393
  • Terminals/poles: Straight jointing -5x1,5-6mm², Branch jointing: main cable 3-5x1,5-6mm², branch cable 3-5x1,5-2,5mm²
  • Dimensions: 55mm x 146mm x 35mm
